Underwater ROV Navigation: How Positioning Works Below the Surface
Once an ROV goes underwater, ordinary GPS stops being useful almost at once. Satellite signals simply do not penetrate seawater well enough for real subsea positioning. That is the core problem. The vehicle may still be moving, inspecting a structure, following a pipeline, or working close to the seabed, but without a proper navigation method, the operator sees video and telemetry without always knowing the exact position with enough confidence.
That is why underwater navigation matters so much in real ROV operations. It affects inspection quality, route repeatability, target return, measurement accuracy, and mission safety. In some jobs, relative positioning is enough. In others, the operator needs stable geographic coordinates, higher positional confidence, or a combination of several systems working together.
Why GPS Does Not Work Underwater
Standard GPS works well on the surface because the receiver reads signals from satellites through open air. Underwater, seawater attenuates those signals very quickly. In practice, that means an ROV cannot rely on direct satellite navigation once it is below the surface.
That is why underwater vehicles use other methods: acoustic positioning, inertial navigation, Doppler-based velocity measurement, seabed references, and hybrid navigation setups that combine several data sources.
Main Underwater Navigation Methods for ROVs

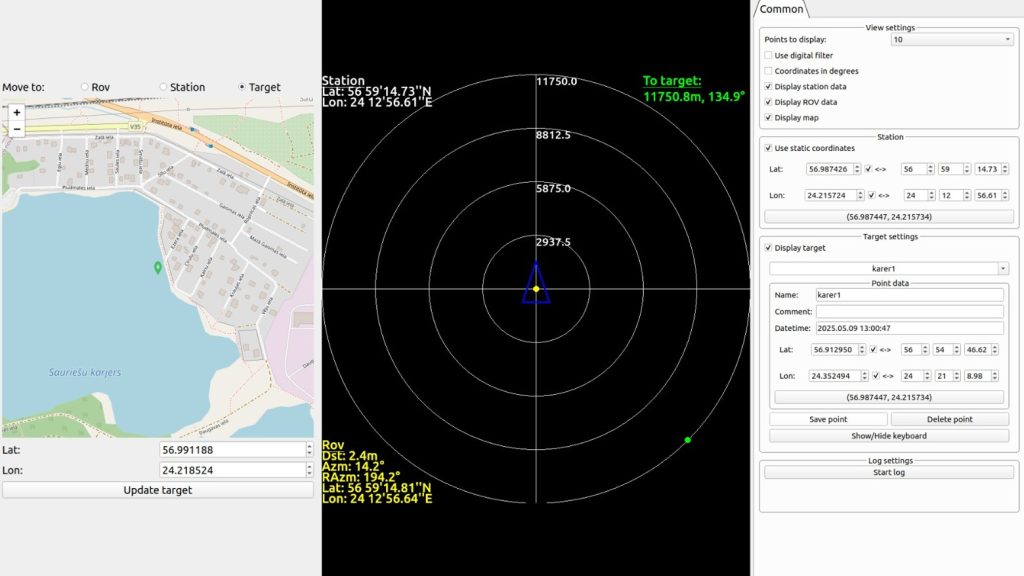

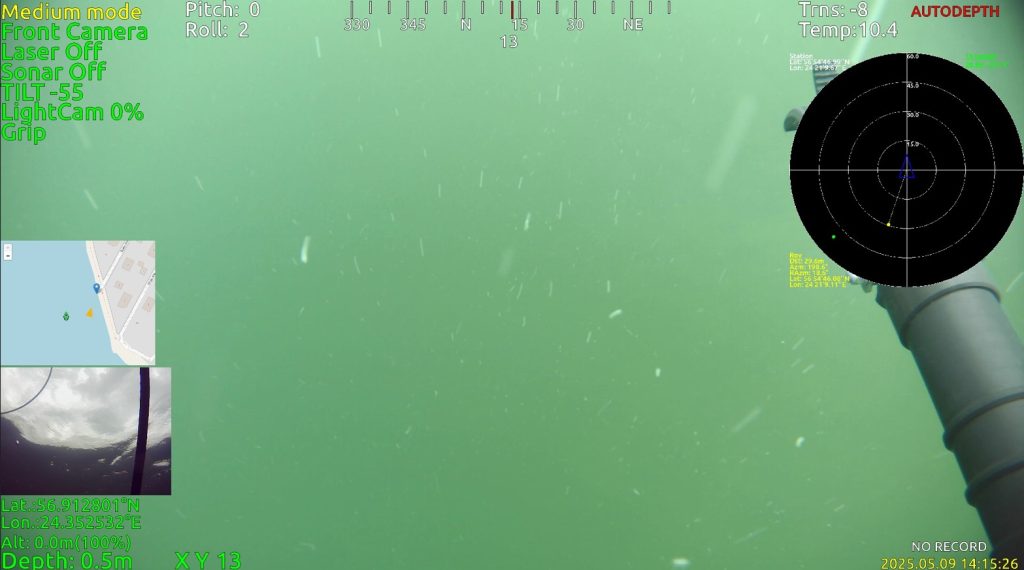

1. Underwater GPS
Underwater GPS usually works through a group of floating or surface reference points equipped with GPS receivers. These surface elements know their own geographic position, and the underwater system calculates the ROV position relative to those known references.
The main advantage is clear: the vehicle position can be tied to a geographic coordinate system, not only to the vessel. That becomes useful when the mission involves mapping, repeated return to exact points, or linking inspection targets to real coordinates.
At the same time, this method is not universal. It needs deployment of several reference points, proper geometry around the work area, and stable communication between the surface system and the vehicle. In small controlled areas that can work well. In rougher conditions or larger sites, it becomes more demanding.
2. USBL (Ultra-Short Baseline)
USBL is one of the most widely used underwater positioning methods in professional ROV work. In practice, it is often part of broader sonar and USBL integration packages used on industrial ROV systems.
A transceiver mounted on the vessel or another surface platform communicates acoustically with a transponder or beacon associated with the underwater vehicle. The system measures signal travel time and arrival angle, then calculates the ROV position relative to the surface platform.
That is the key difference: USBL normally gives relative coordinates from the vessel rather than direct underwater GPS-style positioning by itself. For many inspection and search tasks, that is exactly what the operator needs.
USBL is popular because it can work from a single surface platform. It does not always require a wide spread of external references around the whole job site, which makes deployment faster and operationally simpler.
Still, USBL is not magic. Accuracy depends on acoustic conditions, vessel motion, noise, refraction, multipath effects, calibration quality, and operating range. In the real world, good installation and good setup matter just as much as the equipment itself. If you want to see a practical example, here is a real USBL installation on ROV BR-200.
3. Doppler-Based Navigation
Doppler-based navigation is used to estimate vehicle speed relative to the seabed or the surrounding water. In practice, this is often associated with a DVL, although the exact architecture depends on the project.
The principle is based on frequency shift. The vehicle emits acoustic signals, and the returned signal changes depending on motion. From that shift, the system calculates speed and movement direction.
This does not replace full positioning in every case, but it becomes extremely valuable inside a combined navigation setup. Doppler-based data helps improve dead reckoning, stabilize tracking, and support more precise maneuvering close to structures or the seabed.
4. Inertial Navigation System (INS)
An inertial navigation system uses accelerometers, gyroscopes, and sometimes magnetometers to estimate motion, heading, and displacement from a known starting point.
Its main strength is continuity. INS keeps calculating movement even when acoustic updates become weak or temporarily unavailable.
Its main weakness is drift. Small sensor errors build up over time. Without correction from other sources, the estimated position slowly moves away from reality.
That is why INS works best when combined with USBL, Doppler data, surface GPS, or other external references. In serious underwater work, inertial navigation is usually part of a hybrid architecture rather than a standalone answer.
USBL vs Underwater GPS: What Is the Real Difference?
These two systems are often mentioned together, but they solve the positioning problem in different ways.
Surface Infrastructure
USBL usually works from one vessel or one surface platform.
Underwater GPS usually needs several reference points placed around the work area.
That means USBL is often faster to deploy, while underwater GPS may require more preparation before the mission even starts.
Type of Coordinates
USBL normally provides the ROV position relative to the vessel.
Underwater GPS is designed to provide position in a geographic coordinate system.
That matters when the task requires direct georeferencing of objects, repeatable return to fixed points, or integration with survey data.
Range and Accuracy Trade-Off
USBL can work over longer ranges, but accuracy depends strongly on conditions and setup quality.
Underwater GPS can offer strong local accuracy inside a defined zone, but only when the reference network is properly deployed and maintained.
Environmental Sensitivity
USBL is affected by acoustic noise, water-layer refraction, signal path distortion, and vessel motion.
Underwater GPS also depends on stable geometry of the reference points, reliable communication, and controlled working conditions.
So the question is not which system is always better. The real question is which system fits the mission, the site conditions, the required accuracy, and the operational budget.
In Practice, One System Is Often Not Enough
In real ROV operations, navigation is rarely built around one method alone. A more practical approach is to combine several data sources on an ROV platform for USBL and DVL integration rather than rely on one positioning method in isolation.
A stronger setup often combines:
- USBL for relative acoustic tracking from the vessel
- INS for continuity during signal gaps
- DVL for speed and motion estimation near the seabed
- GPS on the surface platform for geographic reference
- Additional references such as LBL or SBL in higher-precision projects
This combined approach improves stability, reduces uncertainty, and gives the operator a clearer understanding of where the vehicle actually is. You can also see how Baltic ROV presents this in practice on the page about Baltic ROV precision navigation solutions.
When to Use Which Navigation Method
The right choice depends on the job.
For general inspection from a vessel, USBL is often the practical solution because it is faster to deploy and widely used.
For projects where the vehicle position must be tied directly to geographic coordinates in a limited work area, underwater GPS can be attractive.
For precise tracking, route reconstruction, and smoother control near the seabed, INS and Doppler-based systems add major value, especially when combined with acoustic positioning.
For more demanding survey work or complex subsea operations, a hybrid navigation architecture is usually the strongest option.
Choosing Navigation for an Industrial ROV
The choice of navigation method also depends on the vehicle class. A compact inspection ROV may be the right tool for nearshore inspection, confined spaces, and routine visual checks where fast deployment matters more than heavy sensor integration. A 200 m inspection ROV is often a practical middle-ground for general underwater inspection tasks. For more demanding projects, an industrial ROV for subsea inspection gives more room for advanced navigation and payload integration. And when the mission involves deeper water, offshore structures, or more complex subsea survey work, a deep-water industrial ROV is usually the more realistic platform choice.
When selecting a navigation method for an industrial ROV, it is worth asking practical questions first:
- What accuracy is actually required?
- Is the job based on relative positioning or true geographic coordinates?
- How large is the working area?
- How difficult are the acoustic conditions?
- How much deployment time is acceptable?
- Will the system be used for inspection, survey, search, or intervention?
- Does the project justify one method, or is a combined solution more realistic?
A navigation system should not look impressive only on paper. It has to match the operational reality of the mission.
Final Thoughts
Underwater navigation is always a compromise between accuracy, complexity, cost, and operational practicality.
USBL, underwater GPS, INS, and Doppler-based systems all have their place. None of them is perfect on its own. The strongest results usually come from understanding the task clearly and combining the right tools for that specific mission.
If the goal is reliable underwater positioning, the best question is not which technology sounds more advanced. The better question is simpler: which navigation architecture will still work well in real sea conditions, on a real mission, with a real ROV?
FAQ
Can GPS work underwater?
No. Standard satellite GPS does not work for direct underwater positioning because seawater blocks the signal.
What is the most common underwater positioning method for ROVs?
USBL is one of the most common methods because it is practical, flexible, and can often be deployed from a single vessel.
Is USBL more accurate than underwater GPS?
Not in every case. It depends on system setup, range, water conditions, calibration quality, and deployment geometry.
Why combine USBL with INS or DVL?
Because combined systems improve tracking stability, reduce uncertainty, and help maintain navigation performance when one data source becomes less reliable.
What is best for industrial inspection ROV operations?
For many industrial inspection tasks, USBL combined with additional navigation support such as INS or DVL is often more practical than relying on one positioning method alone.
